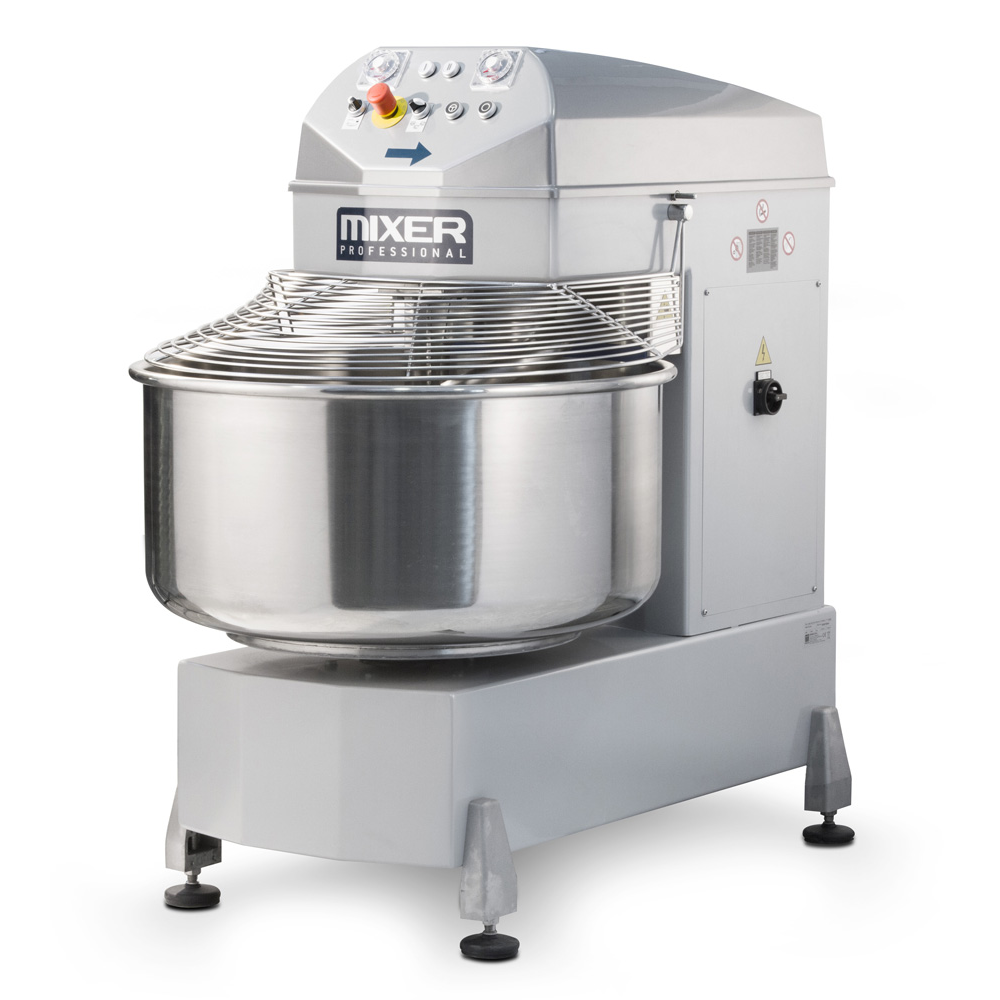

ASM EVO

Painted steel structure raised from the ground on 4 adjustable feet.
• Bowl, spiral, contrast column and guard made in stainless steel.
• Two independent 2-speed motors for spiral and bowl.
• Movement is trasmitted by pulleys and V-belts.
• Bowl thrust roller.
• Frontal control with two timers.
• Setting of work time with automatic shift from 1st to 2nd speed.
• Selector to reverse bowl.
• Impulse button to rotate bowl for product removal.
• Selector to activate second bowl speed.

Model	ASM EVO 130	ASM EVO 160
Dough capacity (min./max) *kg	10/130	10/160
Bowl volume lt	205	260
Motors power 1st / 2nd speed Kw	3.6/6.3	4.6/7.4
Height from bowl edge mm A	950	927
Total depth mm P	1275	1460
Total width mm L	845	945
Height mm H	1470	1500
Net weight kg	460	650
