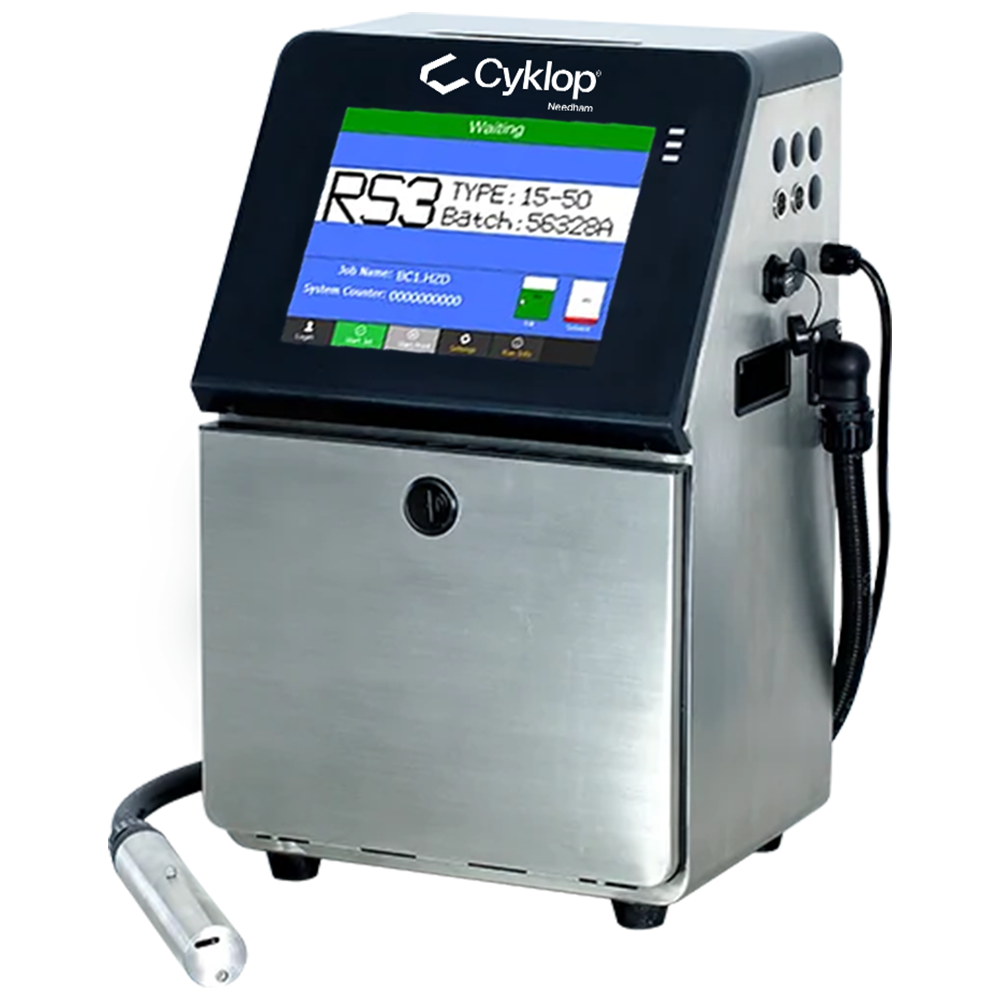

CM780 Continuous Inkjet Printer
Superior Legibility. Pigmented Ink Power. Built for Demanding Surfaces.
The CM780 Continuous Inkjet (CIJ) printer from Cyklop Needham is designed for high-contrast printing on dark or challenging substrates. Leveraging pigmented ink technology, this model delivers bold, permanent prints that remain highly legible under tough industrial conditions. Ideal for automotive, electronics, extrusion, and other applications where visibility is critical.
| Screen Size Colour | 10 inch TFT LCD Touchscreen |
| Printhead | Temperature control printhead, Diameter 41mm |
| Umbilical Length | 2700mm, Bending radius 150mm |
| Nozzle Diameter | 60/70 μm |
| Electricity | 200-240VAC, 50Hz, Rated power: 70w |
| Operating Temperature | 5-45℃ |
| Protection Level | IP 55 |
| User Interface | WYSIWYG system, Touchscreen |
| User Field | QR Code, Barcode, shift, graphics |
| Print Height | 1.2-10mm, 1-5 lines, max. 34 dot |
| Contact-Free Print Distance | 2-15mm. Up to 50mm with print option |
| Fastest Print Speed | 320m/min (60μm model） |
| Addition of Consumable | Plug in cartridge with smart chip. 375ml Ink and 750ml Makeup |
| Standard Ports | Optical sensor, encoder, Ethernet, USB |
| Weight | Net 27kg. Gross weight: 40kg (Including accessories and packing box） |
