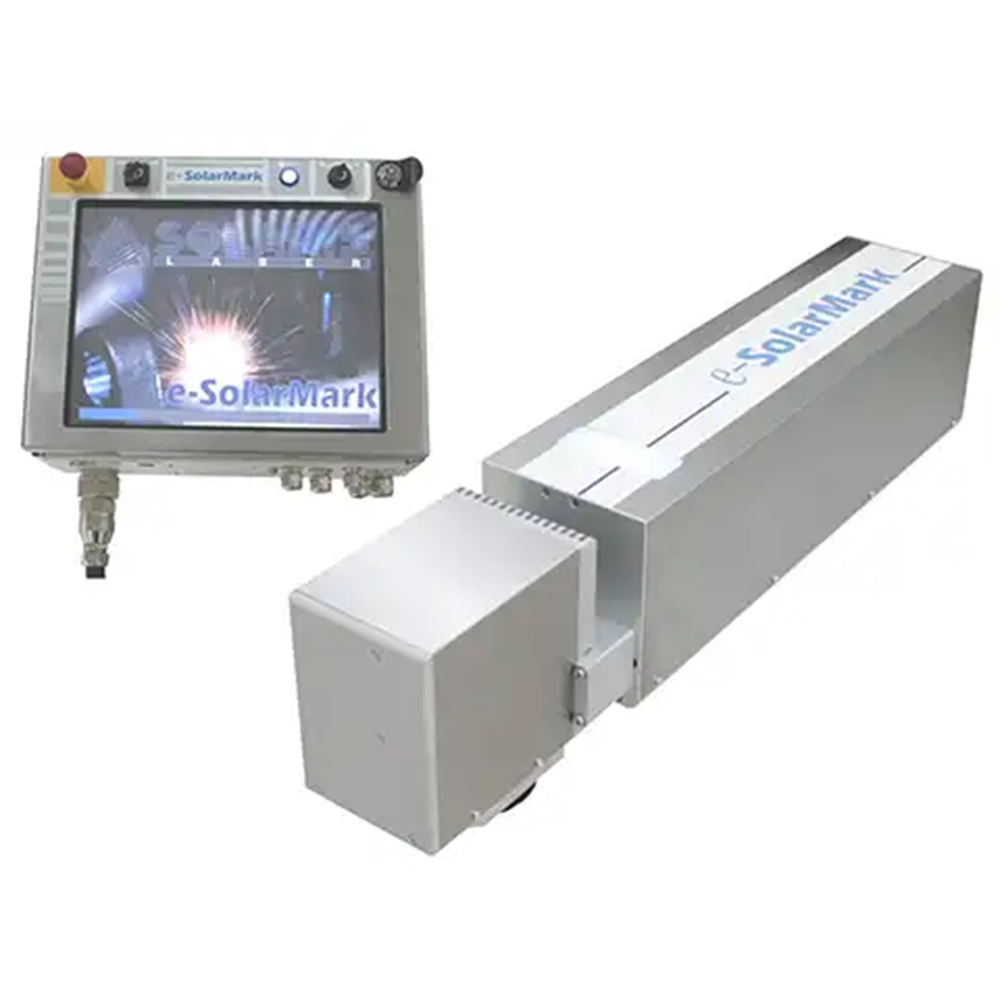

e-SolarMark+ DLG is a cutting-edge laser marker in the green spectrum with low heat exposure, operating at a 532 nm wavelength.
With 10 watts of laser power, this DPSS laser 532 nm delivers markings with superior speed and contrast sharpness. It is ideal for surfaces that are challenging to mark with other wavelengths including plastics, reflective metals, steel, and ceramics.
Laser source
DPSS Laser
Power
10 W
Wavelengths
532 nm
| Laser type | DPSS, power from 5 W to 10 W |
| Wavelength | 532nm |
| Electrical requirements | 115V / 230V , 50/60Hz, 1PH – Auto |
| Marking field | From 100x100mm to 150x150mm |
| Input/Output Signals | Encoder, Product sensor, Safety interlock, Power, Shutter, READY / MARKING / FAULT |
| Cooling | Integrated air cooling with dust protection |
| Ambient temperature | 10-40°C; Suggested 15-30°C |
| Humidity | Up to 90%, non-condensing |
| Enclosure | IP 52 / NEMA 12 |
| Weight | Control Unit 16kg; Marking Unit 13kg |
| Communication | RS 232 / USB / Ethernet 10 Base T |
| Fonts | Multilanguage, Unicode |
| User interface | Multilanguage 15-inch touch screen with user-friendly interface for Preview, Edit & New jobs creation, and System setup |
No manual available
No video available
Like this product? Secure this item by sending your application today!
