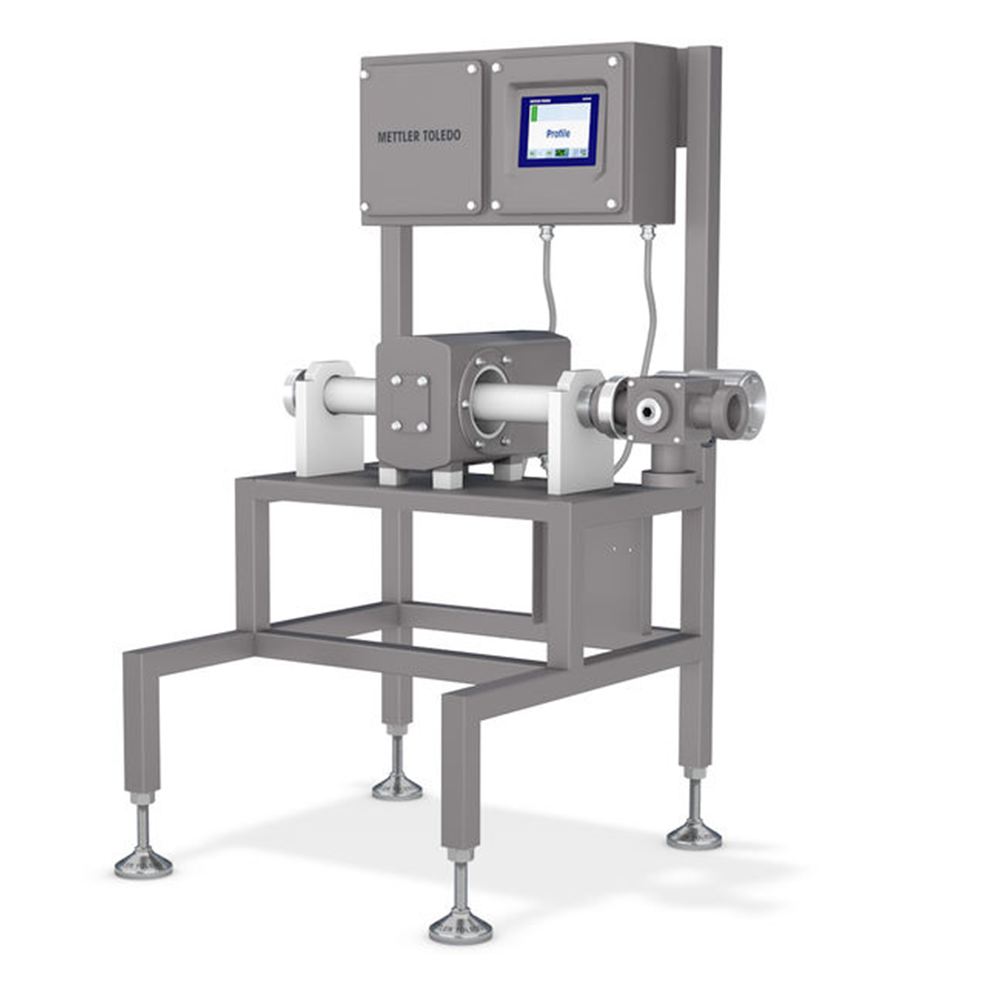

Pipeline Profile Metal Detector



Liquid/slurry/paste inspection.Pipeline metal detector controlled from a full color touchscreen operator interface for the inspection of pumped food products.

Maximum Sensitivity and Performance

Multiple ultra high tuned frequencies with enhanced noise and vibration immunity deliver exceptional sensitivity to consistently detect more metal

Simple to Use and Robust Detector Design

Proven reliability. Intuitive, easy to use icon driven touchscreen with a choice of fully automatic reject device, optimized for each application

Maximum Uptime

Condition Monitoring and automatic balance control combine to deliver a stable operating platform to help maximize performance and minimize downtime

Material No.: 2801547700



IP Rating IP66
Compatible Software ProdX
Connectivity Ethernet TCP/IP, Fieldbus
Inspection Solution Metal Detection
Max Aperture Size 175 mm
HMI 5.7″ Touchscreen
Packaging Type Unpackaged
Product Flow Pipeline
Frequencies up to 800 kHz
Inspection Application Contamination Detection
Product Characteristic Liquid/Paste/Slurry
Industry Chemical, Food & Beverage, Pharma & Biotech
Industry Segment Bulk Chemicals, Dairy, Fine and specialty chemicals, Food Additives, Oils and Fats, Pet Food and Animal Feed
