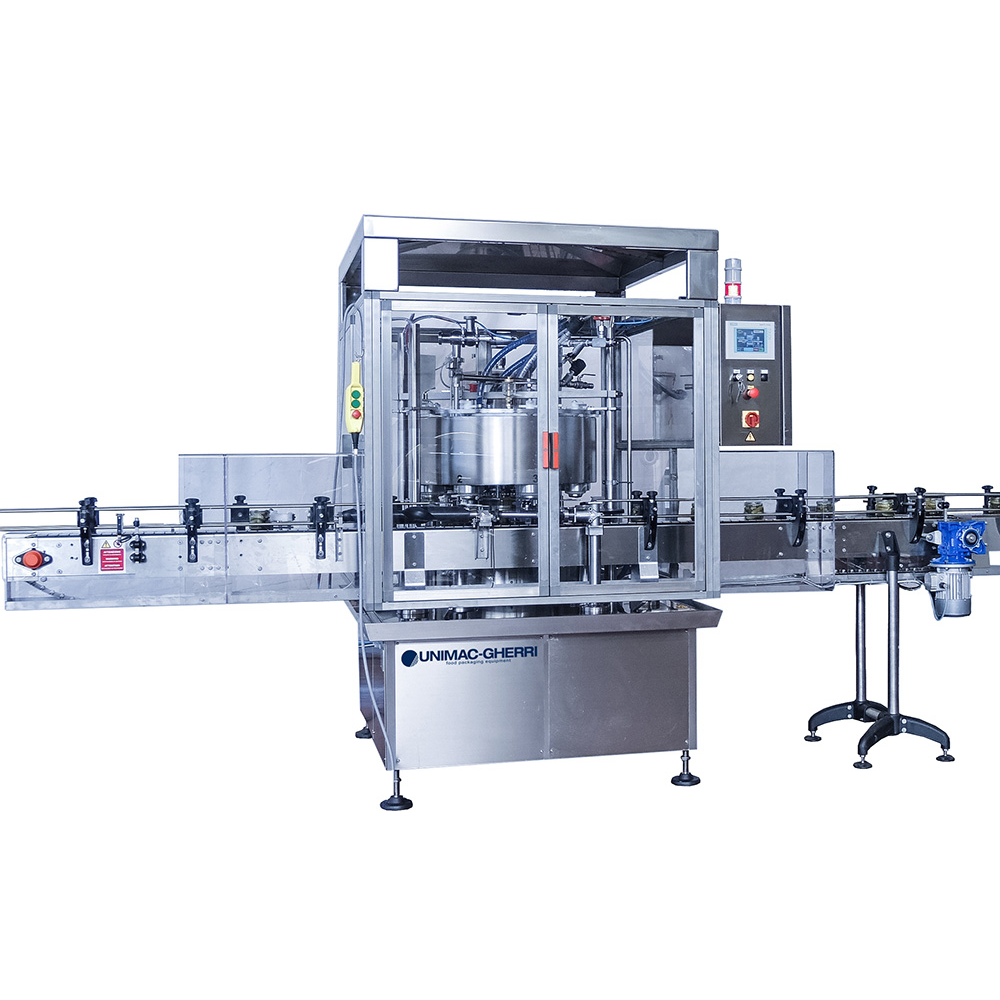

Rotary Vacuum Filler

Stainless steel structure
Stainless steel hopper with automatic product feeding system by a pneumatic valve controlled by level probes
Filling valves with suitable dimensions to ease air outlet
Independent vacuum generating system installed on its structure, consisting of a vacuum pump, a product recovery pump and a stainless steel tank
Safety guards with microswitch to stop the machine when a door opens
Conveyor belt motorised by gear motor controlled by frequency converter.
Stainless steel electric control box with frequency converter and PLC
Control panel

Installed Power	9.5 kW
Dimensions (L x W x H)	3000 x 1500 x 2100 mm
Air Consumption	50 Nl/min at 6 Bar
Steam Consumption	35 kg/h
Water Consumption	900 lt/h
