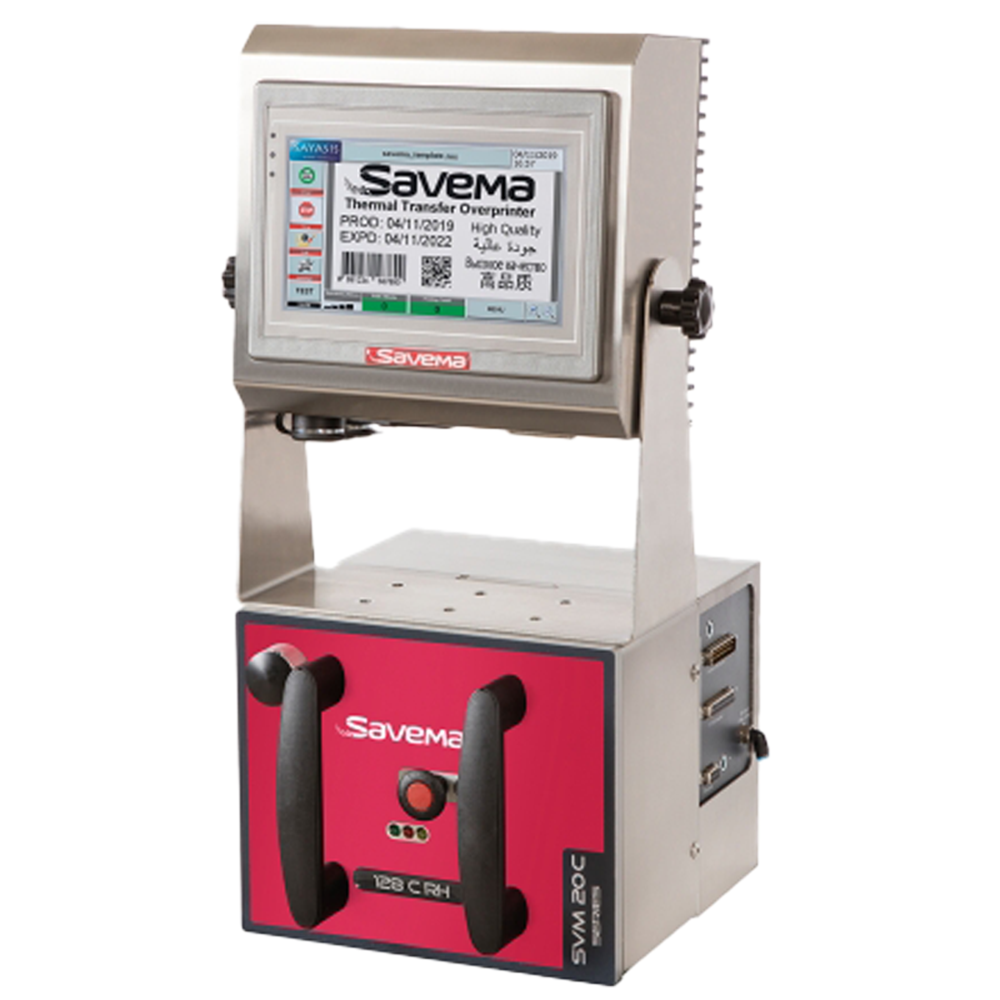

The high performance, cost-effective SAVEMA Thermal Transfer Overprinters (TTOs) are versatile enough for printing fixed and variable text, data, and graphics. It is ideal for reproducing bar codes, real-time, sell-by dates, batch numbers, prices, source codes and much more. Two-component models of brackets (Intermittent & Continuous) can be easily integrated into machines such as vertical and horizontal form-fill-seal systems, primary labelers, thermoformers, and overwrapping equipment. The units are suitable for all continuous applications within the food, pharmaceutical cosmetics, and automobile spare parts industries and have the capability to code all kinds of 1D/2D barcodes and Datamatrix codes.
| Print Area | 128 mm x 200 mm |
| Print Speed | 10 – 400 mm/sec |
| Production | 275 prints/min |
| Power Supply | 100-240V 50-60 Hz |
| Air Supply (Bar) | Min. 2 bar – Max. 5 bar |
| Input/Outputs | Print Signal / Fault Signal, Busy Signal |
| Output Messages | Missing Print Error, Encoder Error, Update Error, Contact Error, Ribbon Break / Not Found Error, Remaining Ribbon Quantity, Number of Printed Templates, Number of Prints per Minute |
| Communications | RS-232, Ethernet, USB |
| Ribbon Save Modes | Vertical Ribbon Save Mode |
| Advanced Control | 7″ Touch Screen Control, Template Changing while Running, Print Position Adjustment, Contrast, Print Delay, Template-Specific Adjustment, Internal Contact Signal, Multi-print Contact Signal, Template Shifting, Template Rotation |
| Operator Interface | 7″ 800×480 Pixels Resolution, Full-color display, Password protection on menus, Multi-language (18) support |
| Weight (Printer) | 12.7 Kg. |
| Dimensions | 180mm H x 265mm W x 323mm D |
