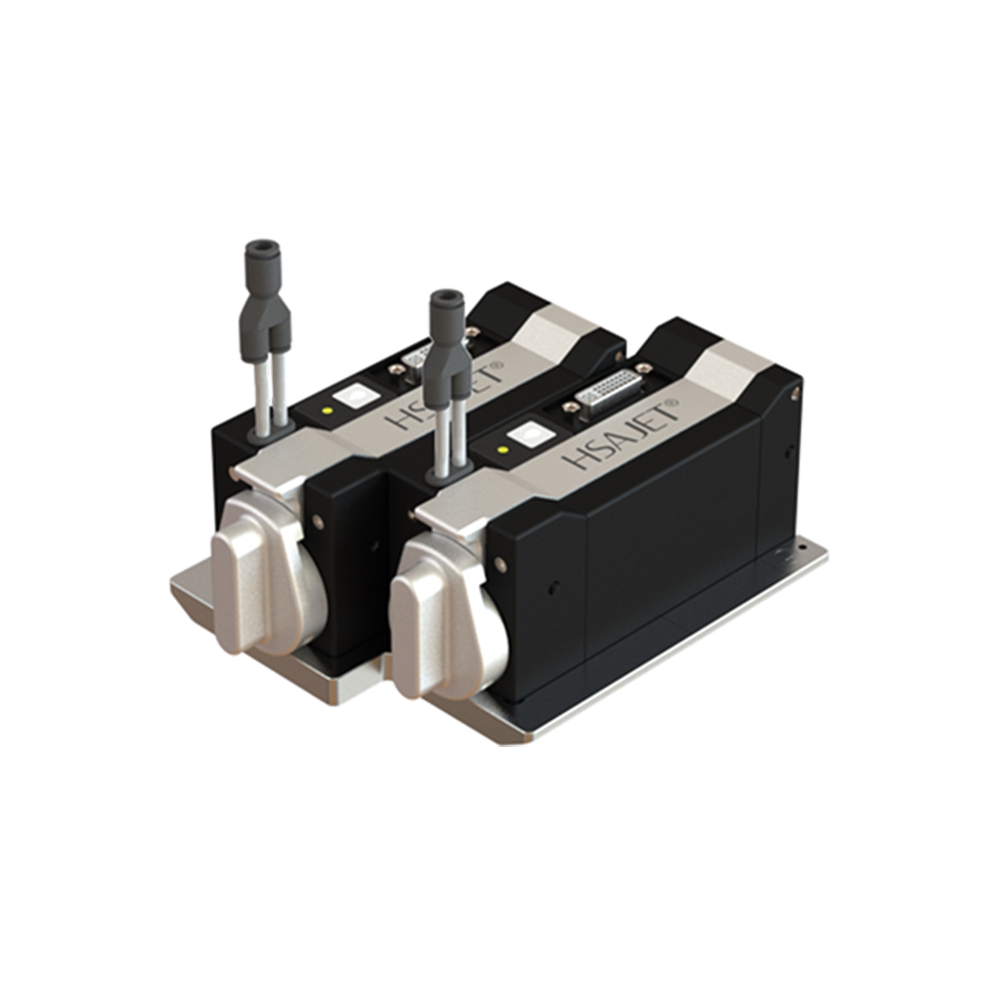

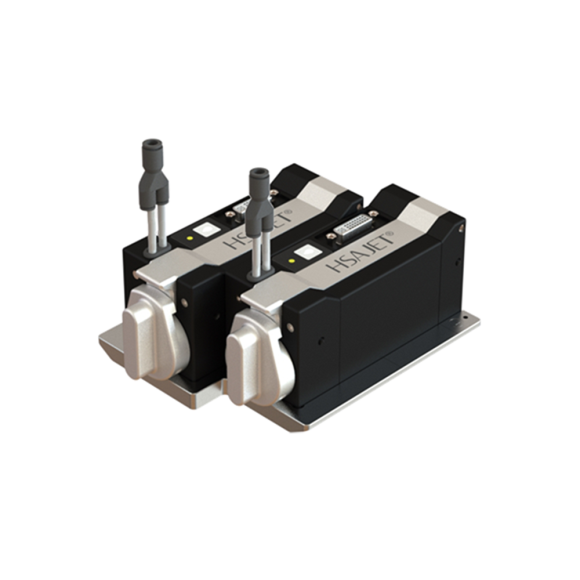

HSAJET® Infinity Printheads

HSAJET® Infinity Printheads for up to 88 mm Print Height
The HSAJET® Infinity printheads are available in four versions: 22 mm, 44 mm, 66 mm, and 88 mm.
Each single printhead enables a large print swath of up to 22 mm print height with no stitching at up to 1200 DPI, which enables printing of a large variety of information in high resolution, such as.

All types of barcodes, e.g. 1D and 2D codes
Alphanumeric texts
Date & Time
Addresses
Batch & Lot number
Counters & Shift codes
Graphics

Technology	HP TIJ 4.0
Print Height	Up to 88 mm – 22 mm per pen
Print Distance	1 – 5 mm (nozzle to print surface), dependent on speed, typically 0.5 – 3.0 mm
Resolution	Up to 1200 x 1200 DPI
Print Speed	Up to 365 m/min
Consumables	HSAJET® 22mm Print Cartridge (replaceable printhead)
Housing	Anodised aluminium, black and natural
