Detect a Wide Range of Contaminants

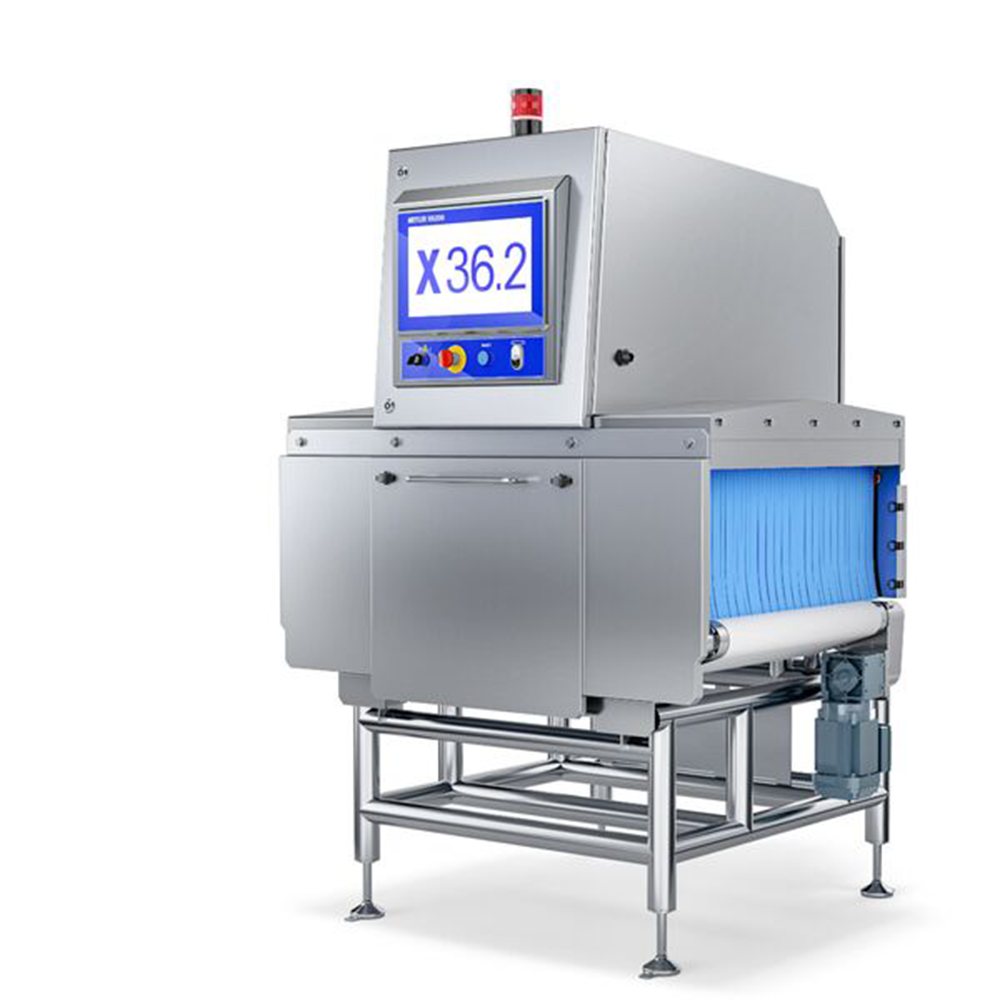

Beyond metal, the X36.2 can detect glass, stone, bone and many low-density materials.
Enhance Product Quality
Perform integrity checks that identify under-fill, missing or broken products and product trapped in seal to improve overall product quality.
Increase Productivity
Clever design combined with an intuitive interface creates user-friendly systems that increase uptime and boost productivity.
Material No.: 30541252100
| IP Rating | IP65,IP66,IP69 |
| Compatible Software | ProdX |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 380 mm |
| HMI | 15.6″ Touchscreen |
| Packaging Type | Cardboard Cartons Metalized Film Plastic Trays |
| Cooling Method | Air Conditioner |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 100 W, up to 84 kV, up to 3.3 mA Beryllium Tube 420 W, up to 84 kV, up to 5.0 mA Beryllium Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Medium-Large Packages |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 200 mm |
| Industry Segment | Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain+ Technology |
| Max Product Weight | 25 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 100 m/min |
| Max Throughput | 1000 ppm |
| Diode Size | 0.4 mm |
