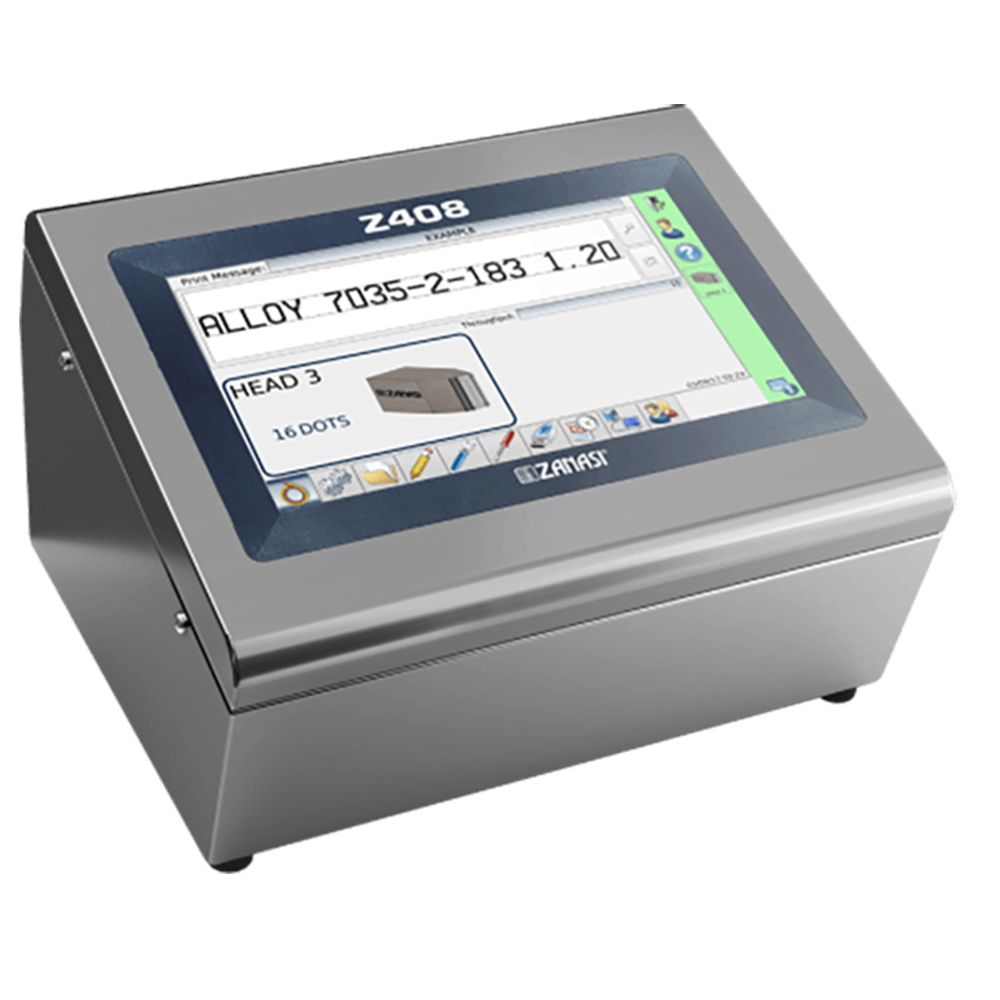

Z408 is a system designed to provide and maintain high-level performance over time in any work environment, including the most hostile, requiring sturdiness and efficiency. It can control, in variable combinations, all types of NZ heads (up to 4), proving to be a versatile and ideal solution for the simultaneous management of several production lines, or to print up to 10 lines on the different sides of the packaging, with a printing range between 5 and 190 mm.
The stainless steel cabinet, solid and compact, is equipped with internal ventilation and a high degree of IP protection, which make the system particularly resistant to the infiltration of dust and water, humidity and high temperatures, therefore able to meet the logistical and marking needs of any production company, ensuring continuous production and avoiding downtime.
Up to ten printing lines
Print height from 5 mm to 190 mm (0,2” – 7,48”)
Coding throw distance up to 35 mm (1,37”)
Line speed capability: up to 180 m/min (591 ft/min)
Printing rate: up to 266 ct/sec
Available fonts: 5×4, 5×5, 6×4, 7×4, 7×5, 9×5, 9×7, 10×8, 12×10, 16×10, 24×16,
32×18, 48×30 and True Type
Up to 6800 stroke per message
Messages and logos storage: up to 4 GB with expandable Micro SD memory
Automatic date, time, off sets and expiry date multifunctions
Incrementing/decreasing alphanumeric product counters up to 9 digits
Metric repeat print – message function
Customizable message repeat with single print start
Field orientation: 0°, 90°, 180°, 270°
Tower print function (text rotation of 90°)
Fixed and variable text field types (automatic or external)
