Reaching Outstanding Detection Levels
Simultaneously detects and rejects physical contaminants in frozen-formed products using our proprietary X-ray software ContamPlusTM.
Exceeding Hygiene Requirements
IP69 design ensures the demands of harsh environments are met using type 316 stainless steel for all key product contact areas, including the reject flap.
Minimizing Product Waste

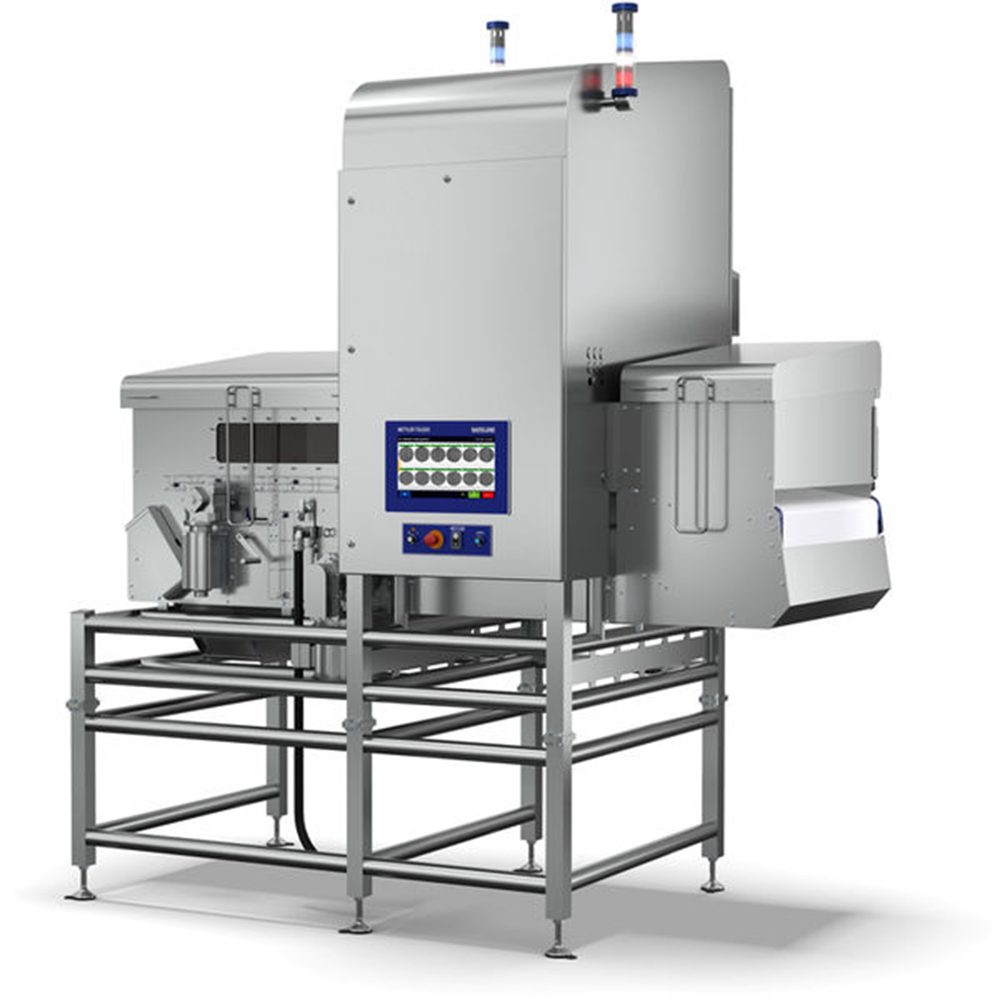

The X39 performs accurate inspections at up to 57 meters per minute, even when the product positioning on the belt varies, thereby maximizing uptime and reducing waste.
Material No.: 3054125200
| IP Rating | IP69 |
| Compatible Software | ProdX |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 580 mm |
| HMI | 15.6″ Touchscreen |
| Packaging Type | Unpackaged |
| Cooling Method | Heat exchanger and radiator pump |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 420 W, up to 84 kV, up to 5.0 mA Beryllium Tube |
| Inspection Application | Completeness Check Contamination Detection Integrity Check Mass Control |
| Product Characteristic | Deep Frozen Open |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 40 mm |
| Industry Segment | Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain Technology |
| Max Product Weight | 30 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 60 m/min |
| Max Throughput | 1800 ppm |
| Diode Size | 0.8 mm |
https://anasia.cat-sw.com/wp-content/uploads/2025/08/X39-EN.pdf
